Container Lashing Equipment

Navacqs offers a complete range of Container Lashing Equipment for stacking and securing containers and custom structures. From twist locks and corner castings to lashing eyes and straps – suitable for both standard and bespoke applications. Technical drawings are available for each product, including 3D models where possible. All items are available directly from stock.

Container Lashing Equipment

Intermediate Twistlock IF-51

Specially designed to stack and lock shipping containers
Solidly constructed Container Twistlocks for years of intensive use
Left or right blocking mechanism
Detailed technical drawing available (Download)

Corner Castings

Suitable for corners of a shipping container or similar constructions
Manufactured according to international ISO 1161:2016 standards
Available as a set of 4 (bottom or top) or 8 pieces (complete container)
Produced from cast steel and primer-coated
Technical drawing available (download top | bottom)

Depot Stacker IF-91

Specially designed to safely stack empty containers
Prevents containers from sliding around
Cost effective and easy to use
Detailed technical drawing available (Download)

Dovetail Twistlock BF-11

Suitable for locking the bottom of the container to the construction
Available with matching deck socket DF-31
Galvanized steel for years of use
Technical drawing available (Download)

Can we advise you? +31 (0) 10-495 0000
sales@navacqs.com

Deck Socket DF-31

Makes the BF-11 Twistlock and Lashing Eye LP-91-45 demountable
Easy to weld onto ship deck or construction
High breaking strength of 500 kN (T) / 420 kN (SH)
Manufactured from steel with primer coating
Technical drawing available (Download)

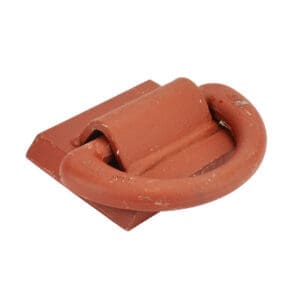

U-Frame Lashing Eye (D-Ring) LP-91-45

High breaking strength of 36 T
Suitable for use in combination with the Deck Socket DF-31
Detailed technical drawing available ( Download )
Made of steel and primer coated

Bridgefittings

Available in two sizes: Small (260 mm) and Large (330 mm)
Suitable for lateral securing of shipping containers
Securing with an open-ended spanner (32) or adjustable spanner (Bahco)
Detailed technical drawing available ( Small | Large )

Semi-Automatic Twistlock IF-56

Specially designed for stacking and securing containers
Lock closes automatically when container is positioned
Ease of use, even in hard to reach placements
Detailed technical drawing available ( Download )

MK-2 Container Lifting Lugs (Set 4 pcs.)

Set of 4 high-quality hooks with an eye diameter of 45 mm
Equiped with lockin pin to prevent slipping
Easy to place at the top of the ISO Corner Castings
Suitable for vertical lifting of shipping containers
Lifting Capacity of 56 T at an angle of 0 ° to 15 °

Breech Base Twistlock BF-66

Lock the shipping container at the bottom
Use in combination with the Breech Base Deck Socket DF-66
Available with left and right closing locking
Galvanized steel for years of use
Technical drawing available (Download)

Breech Base Deck Socket DF-66

Makes the Twistlock BF-66 and the Lashing Eye LP-21 dismountable
Easy to weld on deck or any other steel surface
Placement via the top for extra ease of use in small spaces
Equipped with locking mechanism to prevent loosening
Technical drawing available (Download)

Breech Base Lashing Eye (D-Ring) LP-21

High breaking strength of 36 T
SWL 200 kN (≈ 20T)
Suitable for use with the Breech Base Deck Socket DF-66
Detailed technical drawing available ( Download )

Set Cargo Lashing Chain + Tension Lever (13 mm)

Total chain length of 6 m and link diameter of 13 mm
Combined with Lashing Chain Tension Lever (13 mm)
Features robust hooks on both sides
Suitable for heavy cargo on ships and RoRo transport, among others
DNV GL Certified
W.L.L. (Working Load Limit) of 10 T.

Cargo Lashing Chain (13 mm / 6 m)

Total chain length of 6 m and link diameter of 13 mm
With robust hooks on both sides
Suitable for heavy cargo on ships and RoRo transport, among others
DNV GL Certified
W.L.L. (Working Load Limit) of 10 T.

Lashing Chain Tension Lever (13 mm)

Suitable for tensioning Cargo Lashing Chains
Suitable for heavy cargo on ships and RoRo transport, among others
DNV GL Certified
W.L.L. (Working Load Limit) of 10 T.

LP-6 lashing eye (D-Ring)

Breaking strength 40 kN (≈4T)
W.L.L 20 kN (≈2T)
Includes welding shield
Detailed technical drawing available ( Download )

Lashing Eye LP-13 (D-Ring)

Breaking strength 200 kN (≈20T)
W.L.L. 100 kN (≈10T)
Includes welding shield
Detailed technical drawing available ( Download )

LP-11 lashing eye (D-Ring)

Breaking strength 360 kN (≈36T)
W.L.L. 180 kN (≈18T)
Includes welding shield
Detailed technical drawing available (Download)

LP-14 Lashing Eye (D-Ring)

Breaking strength 500 kN (≈50T)
SWL 250 kN (≈25T)
Includes welding shield
Detailed technical drawing available ( Download )

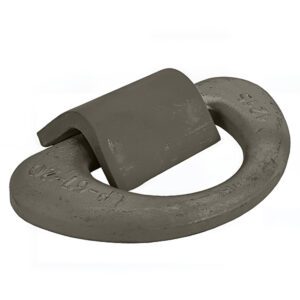

LP-67 Lashing Eye (D-Ring)

High breaking strength of 670 kN (≈67 T)
W.L.L. 335 Kn (≈33,5T)
Supplied with matching welding cap
Detailed technical drawing available ( Download )

Container Lashing Equipment

Container lashing equipment – also referred to as container fittings – is used to stack and secure shipping containers or structural constructions. Navacqs offers a complete range, including twist locks, corner castings, lashing eyes, and straps. Technical drawings are available for every product, often including 3D files.

Container twistlock

Twist locks are used to safely stack or anchor containers. For vertical locking, the Intermediate Twist Lock IF-51 and Semi-Automatic Twist Lock IF-56 are suitable options. For securing containers from the ground or deck, the Dovetail Twist Lock BF-11 is ideal – also available with a matching baseplate. For horizontal locking, adjustable Bridge Fittings are available in two sizes.

Corner castings

Navacqs supplies certified corner castings for both containers and custom constructions. These castings can replace existing ones or be used in new builds. A full set consists of eight pieces: four upper and four lower corner castings.

Cargo lashing belt

To secure cargo inside or on top of containers, Navacqs offers various lashing straps. These belts are suitable for a wide range of transport and logistics applications and ensure stability during movement or storage.

Lashing eyes

Lashing eyes are multifunctional attachment points for securing container structures. They are supplied as standard with a welding cap and available in versions with a breaking strength ranging from 4 to 50 tons.

Shipping container parts and accessories

In addition to twist locks, corner castings, and lashing eyes, Navacqs offers a wide range of additional container lashing components. Looking for a custom solution? Contact us for tailored advice or specific product needs. Technical specifications and downloadable drawings are available on each product page.
