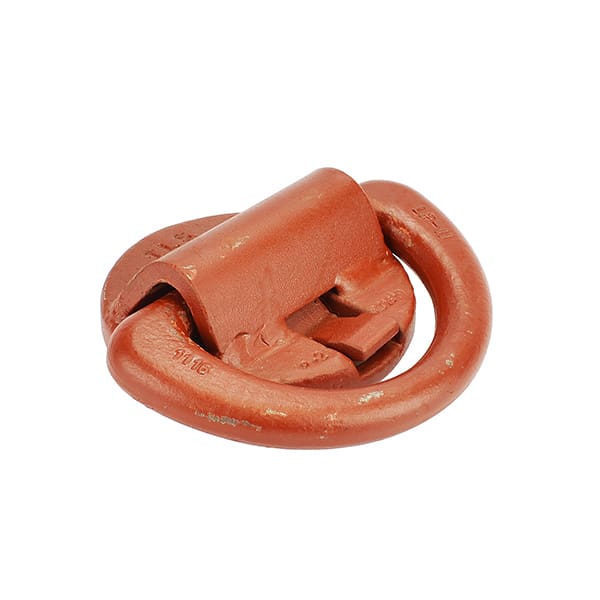

Breech Base Lashing Eye (D-Ring) LP-21

Breech Base Lashing Eye (D-Ring) LP-21

Quantity from 1+ 4+ 8+ 16+
Price per piece €69.00 €63.00 €57.00 €53.00
* Price per piece ex. VAT
SKU: 10-02-0013-00

In stock


Product description Breech Base Lashing Eye (D-Ring) LP-21

“The Breech Base Lashing Eye (D-Ring) LP-21 is a product with a high breaking strength of 36 tons and is ideal for securing loads in various industries. It can only be used in combination with the Breech Base deck socket DF-66 and is easy to remove. The lashing eye can be loaded in all four directions and can be locked after installation to prevent loosening. The lashing eye is placed from above in the base plate and can also be installed in limited space. The lashing eye is made of steel and has a primer that can be painted over.

High breaking strength of 36 tons

If you are looking for a reliable solution for load securing, you should consider the Breech Base Lashing Eye (D-Ring) LP-21. This product has a high breaking strength of 36 tons and is ideal for use in various industries, such as shipping or transportation of heavy loads.

Suitable for use in combination with the Breech Base deck socket DF-66

The Breech Base Lashing Eye (D-Ring) LP-21 can only be used in combination with the Breech Base deck socket DF-66. It is an LP-11 Lashing Eye (36 t) that is easy to remove. A common reason for choosing dismountable lashing eyes in this design is that they only need to be installed when they are actually needed for load securing. Since the lashing eye can be easily removed, the surface remains multifunctional. Another major advantage of this lashing eye is that it is locked after installation. The eye can therefore be loaded in all four directions. The exact installation angle depends on the installation angle of the Breech Base deck socket DF-66. The locking mechanism (see photos) prevents the lashing eye from coming loose. It remains securely fastened in the deck socket.

Easy installation

The Breech Base Lashing Eye (D-Ring) LP-21 can only be placed in the base plate from above. This can be useful in areas where there is limited space. To fasten the lashing eye, it must be turned 1/8 turn. This allows the locking pawl to engage. Since the BF-66 twistlock can also be used in this base plate, it is possible to secure a container and another structure next to it, e.g. with tie-down straps or chains.

The Breech Base Lashing Eye (D-Ring) LP-21 is made of steel and has a primer that can be painted over.

Specifications
Product Breech Base Sjoroog (D-Ring) LP-21
Breaking strength 360 Kn (≈36 T)
Material Forged steel ring + bent steel plate + cast steel base plate
Finish Primer Coated
Weight 8,3 kg
Downloads

Download the technical drawing (.Pdf) here.

Download the 3D model in STEP format (*.stp).

Product description Breech Base Lashing Eye (D-Ring) LP-21

“The Breech Base Lashing Eye (D-Ring) LP-21 is a product with a high breaking strength of 36 tons and is ideal for securing loads in various industries. It can only be used in combination with the Breech Base deck socket DF-66 and is easy to remove. The lashing eye can be loaded in all four directions and can be locked after installation to prevent loosening. The lashing eye is placed from above in the base plate and can also be installed in limited space. The lashing eye is made of steel and has a primer that can be painted over.

High breaking strength of 36 tons

If you are looking for a reliable solution for load securing, you should consider the Breech Base Lashing Eye (D-Ring) LP-21. This product has a high breaking strength of 36 tons and is ideal for use in various industries, such as shipping or transportation of heavy loads.

Suitable for use in combination with the Breech Base deck socket DF-66

The Breech Base Lashing Eye (D-Ring) LP-21 can only be used in combination with the Breech Base deck socket DF-66. It is an LP-11 Lashing Eye (36 t) that is easy to remove. A common reason for choosing dismountable lashing eyes in this design is that they only need to be installed when they are actually needed for load securing. Since the lashing eye can be easily removed, the surface remains multifunctional. Another major advantage of this lashing eye is that it is locked after installation. The eye can therefore be loaded in all four directions. The exact installation angle depends on the installation angle of the Breech Base deck socket DF-66. The locking mechanism (see photos) prevents the lashing eye from coming loose. It remains securely fastened in the deck socket.

Easy installation

The Breech Base Lashing Eye (D-Ring) LP-21 can only be placed in the base plate from above. This can be useful in areas where there is limited space. To fasten the lashing eye, it must be turned 1/8 turn. This allows the locking pawl to engage. Since the BF-66 twistlock can also be used in this base plate, it is possible to secure a container and another structure next to it, e.g. with tie-down straps or chains.

The Breech Base Lashing Eye (D-Ring) LP-21 is made of steel and has a primer that can be painted over.

Product Breech Base Sjoroog (D-Ring) LP-21
Breaking strength 360 Kn (≈36 T)
Material Forged steel ring + bent steel plate + cast steel base plate
Finish Primer Coated
Weight 8,3 kg

Download the technical drawing (.Pdf) here.

Download the 3D model in STEP format (*.stp).

Tailor-made quotation

Do you have specific wishes regarding the Breech Base Lashing Eye (D-Ring) LP-21? We are happy to advise you.

Request quote
