Cable Seals

Navacqs Cable Seals provide a reliable and secure way to seal goods during transport or storage. The combination of an aluminium body and strong steel cable makes them tamper-evident and single-use. Available in various sizes, colours, and models – with or without ISO certification.

Cable Seals

Cable Seal 150

Security Seal with high breaking strength of 330 kg
Flexible steel wire; suitable for tight openings and bent latches
Steel wire (1.5 mm) frayed when broken, making reuse impossible
Suitable for sealing flanges, couplings, and trolleys with valuable items
Provided with a one-off unique imprint and ascending numbering

Cable Seal 180

Security Seal with a high breaking strength of 300 kg
Flexible steel wire; suitable for tight openings and bent locks
Suitable for sealing flanges, couplings, trolleys with valuable articles
Steel wire (1.5 mm) frays when broken, making reuse impossible
Equipped with unique, one-off print and incremental numbering

CS-2 Cable Seal

1.8 mm cable seal with fixed usage length of 300 mm
High breaking strength of 240 kg due to galvanized steel wire
Steel wire (1.8 mm) fraying when broken, making reuse impossible
Suitable for sealing machines
Provided with one-off unique imprint and ascending numbering

Cable Seal 350

Suitable for sealing export containers worldwide
With the latest ISO 17712: 2013 certificate
Approved by customs authorities worldwide, including C-TPAT and ISPS
Steel wire (3.5 mm) fray when broken, making reuse impossible
With a one-off unique printing and ascending numbering

Can we advise you? +31 (0) 10-495 0000
sales@navacqs.com

Cable Seal 500

Suitable for sealing export containers worldwide
With the latest ISO 17712: 2013 certificate
Approved by customs authorities worldwide, including C-TPAT and ISPS
Steel wire (5 mm) fray when broken, making reuse impossible
With unique printing and ascending numbering

Cable Cutter

Ideal for Cutting Cable Seals
Minimal Effort Required to Cut Seals
Weighs Only 205 Grams

High security cable seals

Navacqs Cable Seals are strong, high-quality seals, ideal for applications where safety and reliability are essential. Two models – the Cable Seal 350 and Cable Seal 500 – fall within the High Security Seals category. These have a cable diameter of 3.5 mm and 5.0 mm respectively, and are certified according to ISO 17712:2013. This makes them suitable for sealing containers intended for export. They can only be removed with heavy-duty bolt cutters. Each Cable Seal is unique and combines multiple security features: a locking mechanism, non-reusable steel, and a unique identification code – making them ideal for sectors where traceability and security are paramount.

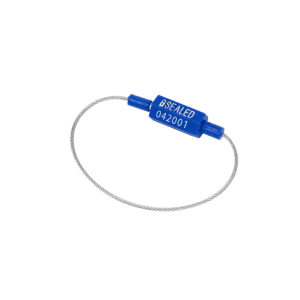

Steel cable seals

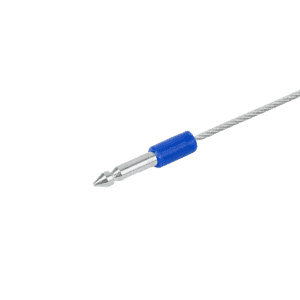

Each cable seal consists of two parts: an aluminium housing and a steel cable. One end of the cable is welded securely inside the housing, while the other is pulled through an opening and locks via an internal gear mechanism. This ensures the seal only tightens in one direction – retraction is impossible. If tampered with, the cable frays, making reuse impossible.

Dimensions of our cable seals

Navacqs offers cable seals in a range of designs with varying cable strengths. The lightest version is the Cable Seal 150, with a 1.5 mm diameter cable – not breakable by hand. The cable consists of multiple intertwined steel wires with a solid core, ranging from 1.5 to 5 mm. The thicker the cable, the higher the breaking strength.

Navacqs cable cutter

To safely remove high-strength Cable Seals, Navacqs offers a robust solution: a durable cable cutter or bolt cutter. These tools are specifically designed to efficiently cut ISO-certified seals like the Cable Seal 350 and 500, without damaging the surroundings.

Branded cable seals

Navacqs Cable Seals come standard with a unique marking and sequential numbering. This combination is produced only once, preventing fraud or reuse. In addition to the stock models, seals can be customised with your own logo or company name. Personalisation is possible from just 1,000 pieces. Contact us via +31 (0) 10-495 0000 or sales@navacqs.com for more information.
