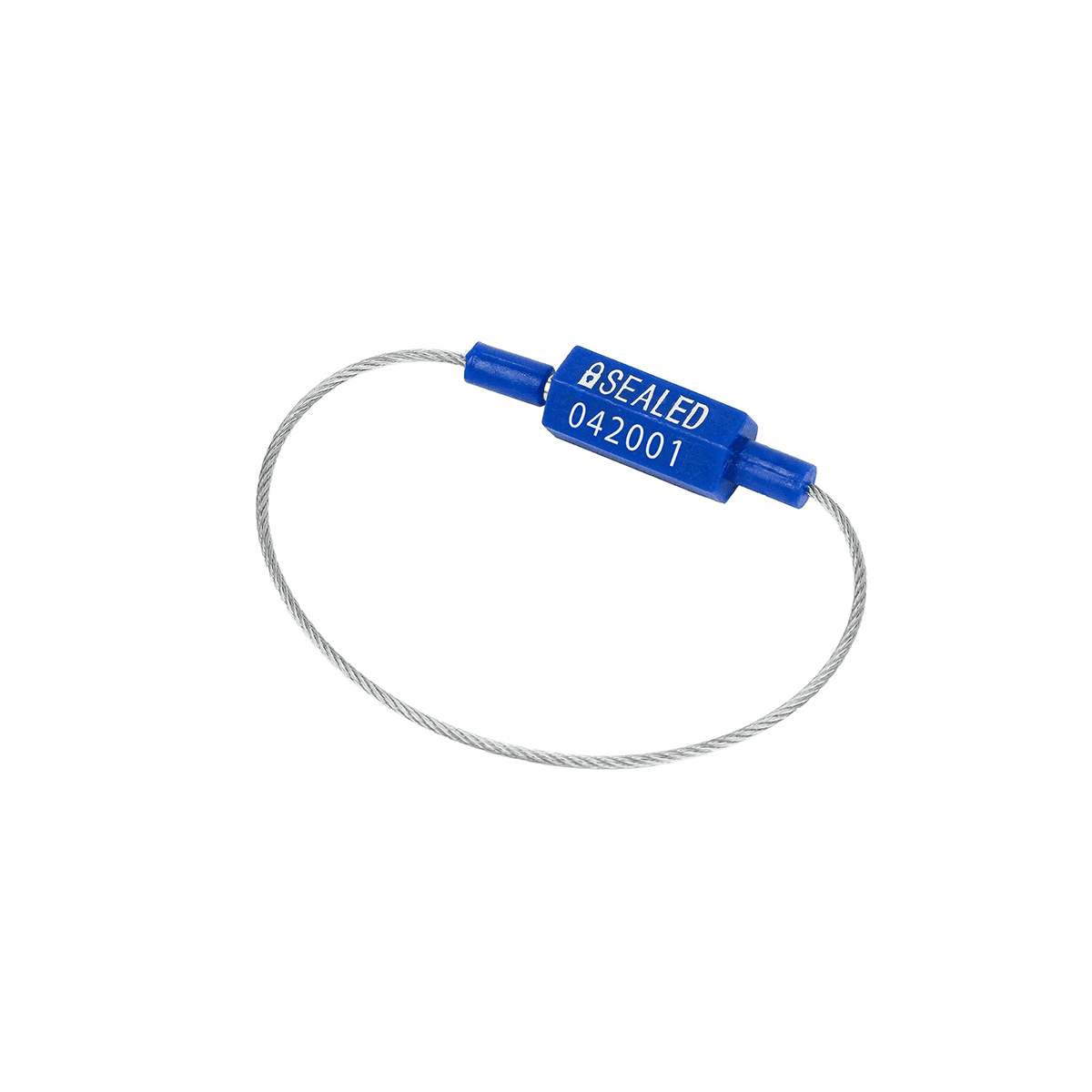

Product description CS-2 Cable Seal

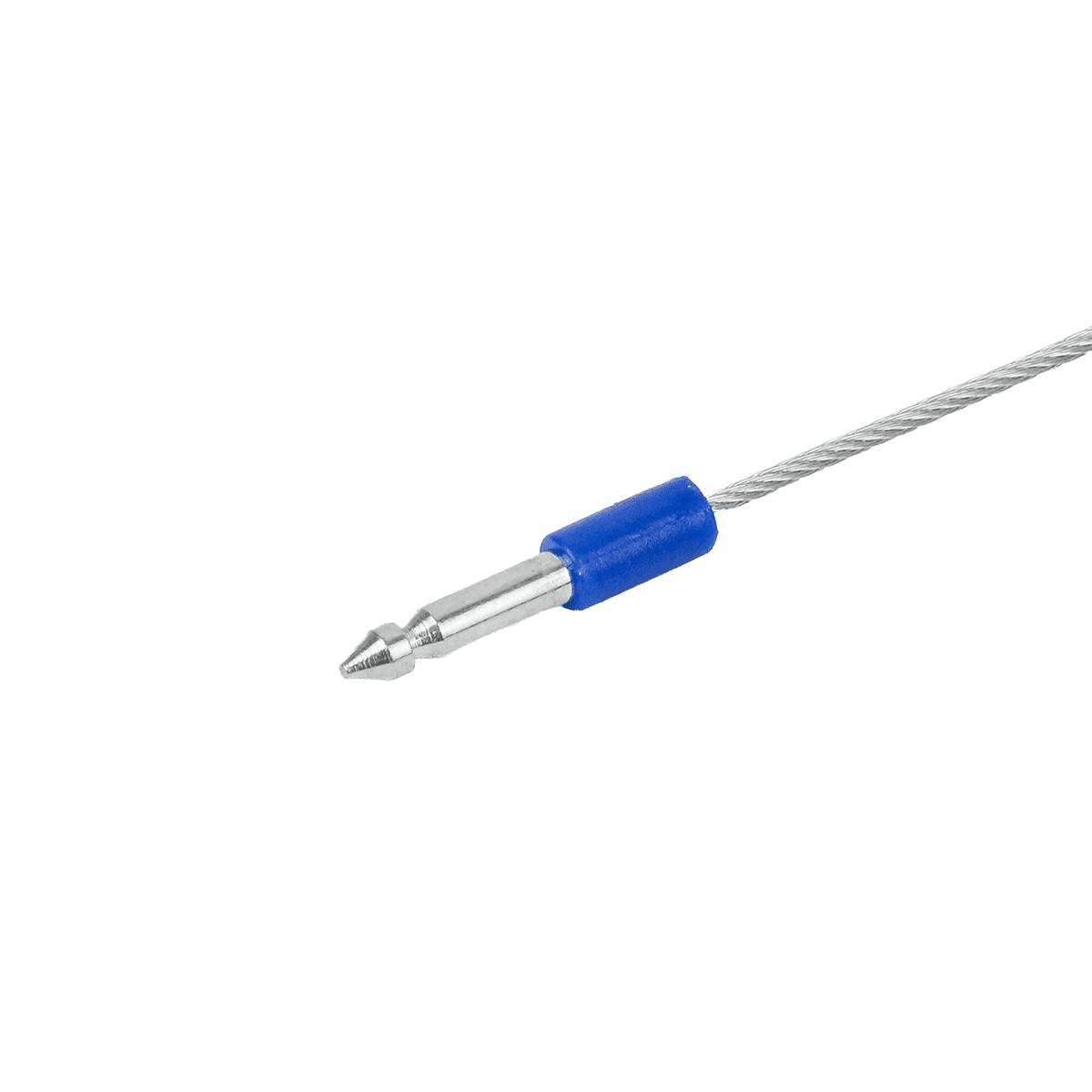

The CS-2 cable seal has a fixed usage length. This pin at the end of this seal simply clicks into the canister at the other end. The product is made of 300 mm galvanized steel wire in combination with an ABS plastic housing. The galvanized steel wire and the steel locking system ensure a high breaking strength of 240 kg. When cutting the steel wire, the bundle of thin wires fray. As a result, it is not possible to reuse the steel wire of this seal. The CS-2 Cable Seal 300 is suitable for sealing, for example, machines in places where sensitive equipment is hidden, or a valve or door to promote the safety of the employee. The CS2 Seal is supplied from stock with the text “CS2”. This is in combination with a unique ascending numbering. Your own imprint is also possible with the CS-2 Cable Seal.

1.8 mm cable seal with fixed usage length of 300 mm

The CS-2 Cable Seal 300 consists of a galvanized steel wire and an ABS plastic housing. The wire of the seal has a length of 300 mm and a diameter of 1.8 mm. The sealing mechanism of the seal is made of steel.

Contrary to most steel wire seals, the CS-2 Cable Seal has a fixed usage length. The pin of the seal clicks on a fixed length in the housing. The advantage of a fixed length seal is that it is impossible to apply the seal under tension. This is relevant, for example, with moving parts or vehicles. The CS-2 moves along and is not exposed to a high peak load. Other Cable Seals, such as the Cable Seal 150 , for example, can be fully attracted.

High breaking strength of 240 kg due to galvanized steel wire

Thanks to the use of high-quality materials and a well thought-out design, this seal is extra strong. The galvanized steel wire and the steel locking system ensure a high breaking strength of 240 kg. This puts the CS-2 Cable Seal 300 in the Security Seals category.

Both the CS-2 Cable Seal 300 and the Cable Seal 150 cannot be broken by hand. Both seals require a pair of nippers to remove the seal. A difference compared to the Cable Seal 150 is that it has a higher breaking strength of 330 kg. Despite its relatively lower breaking strength of 240 kg, the CS-2 is more reliable for some applications, especially when it comes to moving parts and potentially high peak loads.

Steel wire (1.8 mm) fraying when broken, making reuse impossible

The steel wire of the CS-2 Cable Seal 300 consists of a series of braided thin steel wires. The total diameter is 1.8 mm. The thinner wires that are braided together have a diameter of 1.15 mm. The 1.15 mm wire also consists of smaller braided wires with a diameter of only 0.35 mm. The bundling of the many small wires makes the seal flexible and at the same time very strong.

Another important argument for the use of the bundling of thin wires is the prevention of fraud. When cutting the steel wire, the bundle of thin wires fray. As a result, it is not possible to reseal the steel wire of this seal. Reuse is impossible with the CS-2 Cable Seal 300. This makes the seal extra safe.

Suitable for sealing machines

The seal is suitable for applications where security and safety are an essential aspect. For example, the CS-2 Cable Seal 300 is suitable for sealing machines in places where sensitive equipment is concealed, or a flap or door to promote the safety of the employee. In addition, the CS-2 Cable Seal can be used for sealing trucks with valuable cargo. The high breaking strength ensures that unauthorized people cannot gain access to the cargo hold. It is also possible to use this seal as an alternative to a tire seal when sealing a TIR line of a truck.

Provided with one-off unique imprint and ascending numbering

The CS-2 Cable Seal 300 has a unique imprint. The CS2 Seal is supplied from stock with the text “CS2”. This is in combination with a unique ascending numbering. Each seal is assigned a unique number. Navacqs and the manufacturer both ensure that each combination is only produced once. Since every seal is unique, it can help prevent fraud and manipulation. In combination with a well-designed security protocol, fraud is detected in good time.
It is possible to provide CS-2 Cable Seal 300 with your own imprint. For example in the v orm of your own company name or logo. Please contact us via +31 (0) 10-495 0000 or sales@navacqs.com to discuss the possibilities.
