Total length | 325 mm |
Cable length | 300 mm |
Cable diameter | 3,5 mm |
Length casing | 25 mm |
Width casing | 27,60 mm |
Thickness casing | 8 mm |
Breaking Strength | 1250 kg |
Material | Steel + Aluminum |
Quantity from | 50+ | 100+ | 250+ | 500+ | 1000+ | 3000+ |
---|---|---|---|---|---|---|
Price per piece | €1.60 | €1.25 | €0.95 | €0.85 | €0.70 | €0.55 |
The Cable Seal 350 is a versatile ISO 17712: 2013 certified container seal . The seal consists of an aluminum housing and 3.5 mm steel wire that fray when broken. Reuse is therefore impossible. Thanks to the flexible steel wire, the Cable Seal is suitable for sealing containers. Especially for containers with a tight and / or bent lock on the container door. The Cable Seal 350 is provided from stock with the text “CS350 SEALED” in combination with a unique ascending numbering.
The Cable Seal 350 is provided with a galvanized steel wire with a length of 300 mm. The diameter of the wire is 3.5 mm. This makes it easy for the seal to fit through the lock on the container door. Older containers may have the latches bent, preventing a Bolt Seal from fitting through. A Bolt Seal needs a wider opening. The diameter of such a type of seal is at least 8 mm. The Cable Seal 350 has a diameter of only 3.5 mm. This makes it easy to place the container seal through tight openings and to use it when the lock is bent.
A container seal must bear the ISO 17712: 2013 certificate to use for container transport worldwide. The Cable Seal 350 has been officially tested and approved by the MIRDC. This independent company has tested and approved the container sealing.
The certification process consists of two parts, namely the inspection of the seal and the control of the production process of the seal. The seals are checked on a number of aspects. The seal must, among other things, bear the name of the factory. The seal must also be provided with a unique imprint and ascending numbering. Another essential aspect is the letter “H” which stands for High Security. This letter must be clearly visible on the seal.
In addition, the seal must be provided with a number of aspects to prevent fraud. An example of this is that the seal must have a minimum breaking strength, so that the seal cannot be opened by hand. Each component is tested in the MIRDC laboratory.
In addition to certifying the Cable Seal 350, we also look at the production process and quality controls. Each container seal must be 100% in order and meet the strict requirements of ISO. An ISO17712: 2013 seal is also called a High Security Seal.
Container seals with the official ISO certificate are mandatory for international transport. Customs authorities all over the world therefore only accept officially certified container seals. Likewise, the US Customs Agency (C-TPAT) only certified container seals. C-TPAT stands for Customs Trade Partnership Against Terrorism and is a collaboration between Mexico, Canada and the United States, among others.
In addition, there is a collaboration in the maritime sector, namely the International Ship and Port Facility Security Code, abbreviated to ISPS. This code was developed by the International Maritime Organization and aims to prevent terrorism in ships and port facilities. Again, it is mandatory to have a ISO 17712: 2013 certified High Security Seal to use.
The steel wire of the Cable Seal 350 consists of a series of thin steel wires woven together. The total diameter is 3.5 mm. The thinner wires that are braided together have a diameter of 1.15 mm. The 1.15 mm wire also consists of stranded wires with a diameter of 0.35 mm.

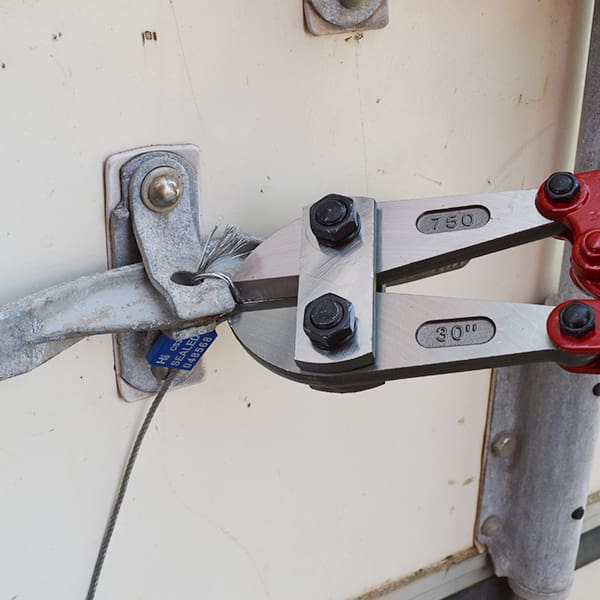

The wire is braided to provide more grip in the housing / lock. The braided wire also ensures that unauthorized persons do not have access to the closure. When cutting the steel wire, the thin wires will fray. This makes it impossible to reseal the steel wire of the container seal. Reuse is impossible with the Cable Seal 350. This makes the seal extra safe.
Each High Security Cable Seal is provided with a unique combination of imprint and numbering. These requirements come from the requirements of ISO 17712: 2013. The Cable Seal 350 is provided from stock with the text “CS350 SEALED” in combination with a unique ascending numbering. Both Navacqs and the manufacturer of the container seal ensure that this unique combination is only produced once.
Total length | 325 mm |
Cable length | 300 mm |
Cable diameter | 3,5 mm |
Length casing | 25 mm |
Width casing | 27,60 mm |
Thickness casing | 8 mm |
Breaking Strength | 1250 kg |
Material | Steel + Aluminum |
There is an option to make the Cable Seal 350 extra unique by adding your own printing to the seal. For example, it is possible to include your logo or company name on the seal. The table below shows the specific possibilities with regard to personalising the Cable Seal 350.
Name Product
|
Cable Seal 350 |
Colour
|
Red, Blue, Yellow, Green, Black
|
Colour Print
|
White (laser)
|
Text option
|
Yes
|
Logo option
|
Yes |
Unique numbering option
|
Yes |
Barcode option
|
Yes |
Certification
|
ISO 17712:2013 |
Minimum order
|
200 pcs
|
Est. Delivery Time*
|
approx 1-2 weeks*
|
* Please contact us for current delivery time.
1) Request your customised quote without obligation! Please be as specific as possible about your printing, colour and other options. Do you have any questions or special wishes? Call us at +31(0)10-4950000 or send an e-mail to sales@navacqs.com
2) We will review your specific requirements with you;
3) If required, we will send you free samples to test the Cable Seal 350;
4) We will prepare a suitable quotation for you, including expected delivery time;
5) Before the seals go into production, you will receive a proof (artwork) for approval. Only after approval will your personalised seals be produced;
6) The seals with your own imprint will be delivered within the agreed deadline. Would you like a repeat order? Please contact us. If the design is known, we can easily continue the numbering on your previous order.
Please contact us at:
+31(0)10-4950000
sales@navacqs.com
Want to try first?
Request free samples of the Cable Seal 350!
