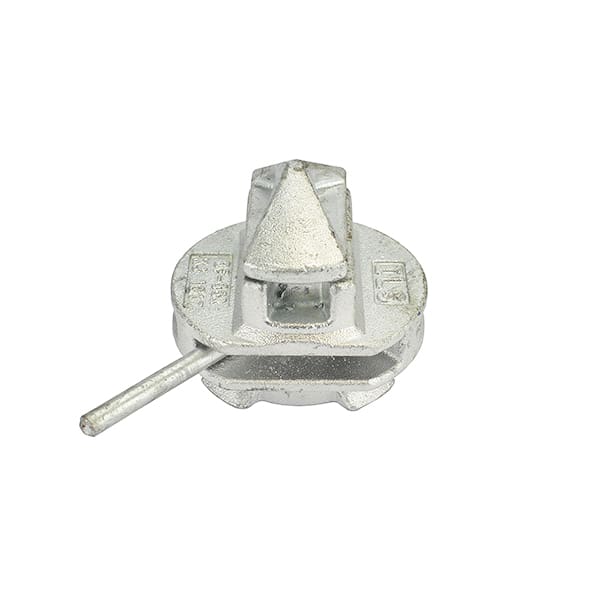

Breech Base Twistlock BF-66

Breech Base Twistlock BF-66

  • Lock the shipping container at the bottom
  • Use in combination with the Breech Base Deck Socket DF-66
  • Available with left and right closing locking
  • Galvanized steel for years of use
  • Technical drawing available (Download)
Quantity from 1+ 4+ 8+ 16+
Price per piece €63.00 €57.00 €54.00 €50.00
* Price per piece ex. VAT
SKU: N/A
Product description Breech Base Twistlock BF-66

The Breech Base Twistlock BF-66 is designed to lock the bottom of a container. This twistlock is similar to the Dovetail Twistlock BF-11, but has a different bottom. The BF-66 can only be placed from above and can be used in four directions. This round bottom twistlock can only be used in combination with the Breech Base Deck Socket DF-66, or a recess in the deck of a ship. The BF-66 Breech Base twistlock is available in a left-closing and a right-closing variant. Each product is made of high-quality galvanized steel and is therefore suitable for years of use. The exact dimensions of the Breech Base Twistlock BF-66 can be found on the technical drawing.

Lock the shipping container at the bottom

The Breech Base Twistlock BF-66 has been specially developed to secure and lock a container from the bottom. Turning the lever of the BF-66 provides the lock. Thanks to the well-thought-out design, the lock cannot come loose due to vibration or weather influences, for example.

The Breech Base Twistlock BF-66 is just like the Dovetail Twistlock BF-11 suitable for securing and locking containers at the bottom. However, the BF-66 twistlock differs from the Dovetail Twistlock BF-11 in two respects:

  • The BF-66 can only be placed from above. This is often used in the case of tight spaces, for example, if another container has already been placed next to it. This can be a solution, especially in inland shipping. In some cases, there is a recess in the deck, similar to the Breech Base Deck Socket DF-66.
  • The BF-66 twistlock can be placed in four directions. In certain situations, it can be useful to orient containers differently, for example with a combination of different types of cargo on the deck of a barge. This also offers the flexibility to Breech Base Lashing eye (D-Ring) LP-21 to be used, for lashing cargo.

Use in combination with the Breech Base Baseplate DF-66

The Breech Base Twistlock BF-66 can only be used in combination with the Breech Base Deck Socket DF-66. This twistlock is placed in the corresponding deck socket (not included, to be ordered separately). In addition, the DF-66 can be used on an (inland) ship, where breech base recesses are present in the deck.

The accompanying Breech Base Deck Socket DF-66 can also be used in combination with the Breech Base Lashing eye (D-Ring) LP-21. This makes it possible to switch quickly between transporting containers and temporarily placing an extra lashing eye to secure cargo on the deck.

Available with left and right blocking

The BF-66 Breech Base twistlock is available in a left-blocking and a right-blocking variant. The lever of the left-closing twistlock is in a neutral position on the right. By turning the handle to the left by hand, the point on the top of the twistlock also rotates. The locking takes place inside the corner of the container, the corner casting. The right-closing variant works the same, only the position of the lever is mirrored to the left-closing BF-66. The handle is on the left and is manually turned to the right to secure a container.

In terms of use, the left and right versions are identical. It depends on the preference of which choice is made. Common is the use of 2 left-blocking and two right-blocking twistlocks in one container. In this case, all levers are inward when the twistlocks are properly locked. Another consideration is to choose one type of twistlock, for example, all left-blocking. The advantage of this is that all levers point in the same direction when closed. It usually works faster and the chance of errors is smaller. After all, it is not possible to accidentally swap left and right-blocking twistlocks while placing them on the deck.

Galvanized steel for years of use

The Breech Base Twistlock BF-66 is made of high-quality galvanized plastic rd steel. This protects the Twistlock against weather influences and seawater. By protecting against corrosion, the twistlocks can be used for years.

Trustworthy lock

When locking the Breech Base Twistlock, a greased bearing moves inside the twist lock that is held in place with a spring. This distinctive design choice means that the lever must be turned with light force and simply cannot accidentally snap back. It thus improves the reliability and safety of the use of this twistlock.

The Breech Base Twistlock BF-66 is similar to the following articles from other manufacturers

B-22, B-22 / L, B-22 / R, B-22L, B-22R, F656

Specifications
Product
Breech Base Twistlock BF-66
Breaking strength
500 Kn (≈50 T)
Material
Cast steel housing and forged steel core
Finish
Shot-blasted and hot-dip galvanised
Weight
5,7 Kg
Video
Downloads

Download the technical drawing (.pdf)

Download the 3D model (.stp) and import in any technical drawing software

Product description Breech Base Twistlock BF-66

The Breech Base Twistlock BF-66 is designed to lock the bottom of a container. This twistlock is similar to the Dovetail Twistlock BF-11, but has a different bottom. The BF-66 can only be placed from above and can be used in four directions. This round bottom twistlock can only be used in combination with the Breech Base Deck Socket DF-66, or a recess in the deck of a ship. The BF-66 Breech Base twistlock is available in a left-closing and a right-closing variant. Each product is made of high-quality galvanized steel and is therefore suitable for years of use. The exact dimensions of the Breech Base Twistlock BF-66 can be found on the technical drawing.

Lock the shipping container at the bottom

The Breech Base Twistlock BF-66 has been specially developed to secure and lock a container from the bottom. Turning the lever of the BF-66 provides the lock. Thanks to the well-thought-out design, the lock cannot come loose due to vibration or weather influences, for example.

The Breech Base Twistlock BF-66 is just like the Dovetail Twistlock BF-11 suitable for securing and locking containers at the bottom. However, the BF-66 twistlock differs from the Dovetail Twistlock BF-11 in two respects:

  • The BF-66 can only be placed from above. This is often used in the case of tight spaces, for example, if another container has already been placed next to it. This can be a solution, especially in inland shipping. In some cases, there is a recess in the deck, similar to the Breech Base Deck Socket DF-66.
  • The BF-66 twistlock can be placed in four directions. In certain situations, it can be useful to orient containers differently, for example with a combination of different types of cargo on the deck of a barge. This also offers the flexibility to Breech Base Lashing eye (D-Ring) LP-21 to be used, for lashing cargo.

Use in combination with the Breech Base Baseplate DF-66

The Breech Base Twistlock BF-66 can only be used in combination with the Breech Base Deck Socket DF-66. This twistlock is placed in the corresponding deck socket (not included, to be ordered separately). In addition, the DF-66 can be used on an (inland) ship, where breech base recesses are present in the deck.

The accompanying Breech Base Deck Socket DF-66 can also be used in combination with the Breech Base Lashing eye (D-Ring) LP-21. This makes it possible to switch quickly between transporting containers and temporarily placing an extra lashing eye to secure cargo on the deck.

Available with left and right blocking

The BF-66 Breech Base twistlock is available in a left-blocking and a right-blocking variant. The lever of the left-closing twistlock is in a neutral position on the right. By turning the handle to the left by hand, the point on the top of the twistlock also rotates. The locking takes place inside the corner of the container, the corner casting. The right-closing variant works the same, only the position of the lever is mirrored to the left-closing BF-66. The handle is on the left and is manually turned to the right to secure a container.

In terms of use, the left and right versions are identical. It depends on the preference of which choice is made. Common is the use of 2 left-blocking and two right-blocking twistlocks in one container. In this case, all levers are inward when the twistlocks are properly locked. Another consideration is to choose one type of twistlock, for example, all left-blocking. The advantage of this is that all levers point in the same direction when closed. It usually works faster and the chance of errors is smaller. After all, it is not possible to accidentally swap left and right-blocking twistlocks while placing them on the deck.

Galvanized steel for years of use

The Breech Base Twistlock BF-66 is made of high-quality galvanized plastic rd steel. This protects the Twistlock against weather influences and seawater. By protecting against corrosion, the twistlocks can be used for years.

Trustworthy lock

When locking the Breech Base Twistlock, a greased bearing moves inside the twist lock that is held in place with a spring. This distinctive design choice means that the lever must be turned with light force and simply cannot accidentally snap back. It thus improves the reliability and safety of the use of this twistlock.

The Breech Base Twistlock BF-66 is similar to the following articles from other manufacturers

B-22, B-22 / L, B-22 / R, B-22L, B-22R, F656

Product
Breech Base Twistlock BF-66
Breaking strength
500 Kn (≈50 T)
Material
Cast steel housing and forged steel core
Finish
Shot-blasted and hot-dip galvanised
Weight
5,7 Kg

Download the technical drawing (.pdf)

Download the 3D model (.stp) and import in any technical drawing software
