Universal Seal

Universal Seal

  • Smooth seal tail with stainless steel closing mechanism for extra ease of sealing
  • Thin (2.3 mm) and solid seal with breaking strength of 15 kg
  • Available in three lengths: Small (20.5 cm), Medium (28 cm) and Large (39 cm)
  • Seal suitable for sealing, among other things, tankers, IBCs and collection boxes
  • Excellent legibility due to white print on black background
Quantity from 200+ 600+ 1000+ 3000+ 5000+
Price per piece €0.21 €0.16 €0.125 €0.115 €0.10
Quantity from 200+ 600+ 1000+ 3000+ 5000+
Price per piece €0.22 €0.17 €0.14 €0.115 €0.10
Quantity from 200+ 600+ 1000+ 3000+ 5000+
Price per piece €0.23 €0.18 €0.15 €0.135 €0.115
* Price per piece ex. VAT
SKU: N/A
Product description Universal Seal

The Universal Seal is a versatile seal with a smooth tail of only Ø 2.3 mm. This makes lacing easy, even when space is limited. This type of seal is available in 3 different sizes: Small (20.5 cm), Medium (28 cm) and Large (39 cm). The Universal Seal is suitable for sealing tankers, IBCs and collection boxes, among other things. Each Universal Seal is unique and has a one-time produced number. This makes fraud with these seals impossible. The print is very legible due to the white print on a black background. In addition to the various variants from stock, it is also possible to order the Universal Seal with a personalized print, with your own text or logo.

Smooth seal tail with stainless steel closing mechanism for extra ease of sealing

The Universal Seal is a versatile seal thanks to, among other things, the smooth seal tail. This ensures that the seal can easily be pulled through (narrow) openings. There are a number of ridges at the end of the stamping street. This ribbed end provides extra grip while putting on the seal.

In addition to the smooth seal tail, Universal Seal has an extra strong closure. The closing mechanism consists of a stainless steel ring with teeth. The teeth are placed in the form of a barb. This allows the tail of the seal to go only one way. Opening is not possible without breaking the seal. Reuse of the seal is impossible.

To properly seal the seal, a number of arrows are located on the back of the closing mechanism. These arrows indicate the side where the seal tail should be inserted.

Thin (2.3 mm) and solid seal with breaking strength of 15 kg

The diameter of the Universal Seal is 2.3 mm. It easily fits through narrow openings. In addition, the smooth seal tail ensures that the seal does not get caught, as sealing with a serrated seal tail can cause discomfort.

Material resistant to extreme temperatures and chemicals

This seal is made of high quality Polypropylene (PP). This reliable material is suitable for use with most chemicals. PP is also temperature resistant. The Universal Seal is resistant to temperatures from -40 to +80 degrees Celsius. Another advantage of the use of PP is its high rigidity, which makes the seal extra strong. Despite its stiffness and strength, the material is still flexible. This makes lacing on the work floor easy.

Difficult to open by hand

Thanks to the strong stainless steel closing mechanism and the choice of material (PP), the Universal Seal has a breaking strength of 15 kg. This makes the seal quite difficult to open by hand. However, it is possible with sufficient force. With a breaking strength of 15 kg, the Universal Seal falls under the category of indicative seals with medium breaking strength. For example, a stronger seal is the Swift Seal with a breaking strength of 35 kg. The One Piece Seal is an example of a seal with a lower breaking strength of only 6 kg.

Available in three lengths: Small (20.5 cm), Medium (28 cm) and Large (39 cm)

The Universal Seal is available in three different lengths. This means that a suitable length is available for every application. The shortest variant is the Small with a length of 20.5 cm. The longest version is the Large with a length of 39 cm. The Medium version has a length of 28 cm.

Seal suitable for sealing, among other things, tankers, IBCs and collection boxes

The unique properties make the Universal Seal a versatile all-rounder. For example, tankers can easily be sealed with the Universal Seal. The smooth seal tail slides easily through the openings of the closures. The material is also resistant to chemicals. This makes the seal also suitable for sealing IBCs (Intermediate Bulk Containers).

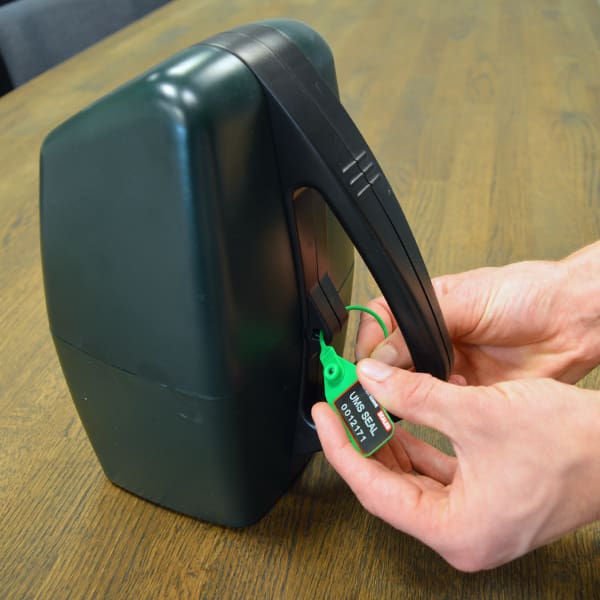

In addition, the Universal Seal can be used for sealing collection boxes. The thin, smooth seal tail simply fits through the locking system of a collection box. The Small variant (20.5 cm) is sufficient for this application as little length is required.

Excellent legibility due to white print on black background

The Universal Seal has a unique imprint with ascending numbering. The combination between the imprint and numbering is only produced once. This way, every Universal Seal is unique and fraud is prevented. An additional advantage is that the wi The print is lasered on a black background. This creates a high contrast, making the print excellent legible.

From stock, the Universal Seal is provided with a standard imprint (UMS, UM or UML Seal, depending on the length) with unique ascending numbering. In addition to the stock product, it is possible to provide the Universal Seal with its own imprint. For example in the form of your own company name or logo. These seals are also available in every possible color and shade. Please contact us via +31 (0) 10-495 0000 or sales@navacqs.com to discuss the possibilities.



Specifications
Product Universal S Seal Universal M Seal Universal L Seal
Total length 205 mm 285 mm 385 mm
Usage length 120 mm 200 mm 300 mm
Diameter 2,3 mm 2,3 mm 2,3 mm
Breaking strength 15 kg 15 kg 15 kg
Material Polypropylene Polypropylene Polypropylene
Product description Universal Seal

The Universal Seal is a versatile seal with a smooth tail of only Ø 2.3 mm. This makes lacing easy, even when space is limited. This type of seal is available in 3 different sizes: Small (20.5 cm), Medium (28 cm) and Large (39 cm). The Universal Seal is suitable for sealing tankers, IBCs and collection boxes, among other things. Each Universal Seal is unique and has a one-time produced number. This makes fraud with these seals impossible. The print is very legible due to the white print on a black background. In addition to the various variants from stock, it is also possible to order the Universal Seal with a personalized print, with your own text or logo.

Smooth seal tail with stainless steel closing mechanism for extra ease of sealing

The Universal Seal is a versatile seal thanks to, among other things, the smooth seal tail. This ensures that the seal can easily be pulled through (narrow) openings. There are a number of ridges at the end of the stamping street. This ribbed end provides extra grip while putting on the seal.

In addition to the smooth seal tail, Universal Seal has an extra strong closure. The closing mechanism consists of a stainless steel ring with teeth. The teeth are placed in the form of a barb. This allows the tail of the seal to go only one way. Opening is not possible without breaking the seal. Reuse of the seal is impossible.

To properly seal the seal, a number of arrows are located on the back of the closing mechanism. These arrows indicate the side where the seal tail should be inserted.

Thin (2.3 mm) and solid seal with breaking strength of 15 kg

The diameter of the Universal Seal is 2.3 mm. It easily fits through narrow openings. In addition, the smooth seal tail ensures that the seal does not get caught, as sealing with a serrated seal tail can cause discomfort.

Material resistant to extreme temperatures and chemicals

This seal is made of high quality Polypropylene (PP). This reliable material is suitable for use with most chemicals. PP is also temperature resistant. The Universal Seal is resistant to temperatures from -40 to +80 degrees Celsius. Another advantage of the use of PP is its high rigidity, which makes the seal extra strong. Despite its stiffness and strength, the material is still flexible. This makes lacing on the work floor easy.

Difficult to open by hand

Thanks to the strong stainless steel closing mechanism and the choice of material (PP), the Universal Seal has a breaking strength of 15 kg. This makes the seal quite difficult to open by hand. However, it is possible with sufficient force. With a breaking strength of 15 kg, the Universal Seal falls under the category of indicative seals with medium breaking strength. For example, a stronger seal is the Swift Seal with a breaking strength of 35 kg. The One Piece Seal is an example of a seal with a lower breaking strength of only 6 kg.

Available in three lengths: Small (20.5 cm), Medium (28 cm) and Large (39 cm)

The Universal Seal is available in three different lengths. This means that a suitable length is available for every application. The shortest variant is the Small with a length of 20.5 cm. The longest version is the Large with a length of 39 cm. The Medium version has a length of 28 cm.

Seal suitable for sealing, among other things, tankers, IBCs and collection boxes

The unique properties make the Universal Seal a versatile all-rounder. For example, tankers can easily be sealed with the Universal Seal. The smooth seal tail slides easily through the openings of the closures. The material is also resistant to chemicals. This makes the seal also suitable for sealing IBCs (Intermediate Bulk Containers).

In addition, the Universal Seal can be used for sealing collection boxes. The thin, smooth seal tail simply fits through the locking system of a collection box. The Small variant (20.5 cm) is sufficient for this application as little length is required.

Excellent legibility due to white print on black background

The Universal Seal has a unique imprint with ascending numbering. The combination between the imprint and numbering is only produced once. This way, every Universal Seal is unique and fraud is prevented. An additional advantage is that the wi The print is lasered on a black background. This creates a high contrast, making the print excellent legible.

From stock, the Universal Seal is provided with a standard imprint (UMS, UM or UML Seal, depending on the length) with unique ascending numbering. In addition to the stock product, it is possible to provide the Universal Seal with its own imprint. For example in the form of your own company name or logo. These seals are also available in every possible color and shade. Please contact us via +31 (0) 10-495 0000 or sales@navacqs.com to discuss the possibilities.



Product Universal S Seal Universal M Seal Universal L Seal
Total length 205 mm 285 mm 385 mm
Usage length 120 mm 200 mm 300 mm
Diameter 2,3 mm 2,3 mm 2,3 mm
Breaking strength 15 kg 15 kg 15 kg
Material Polypropylene Polypropylene Polypropylene

There is an option to make the Universal Seal extra unique by adding your own printing to the seal. For example, it is possible to include your logo or company name on the seal. The table below shows the specific possibilities with regard to personalising the Universal Seal.



Name Product Universal Seal
Colour
Red, Blue, White, Yellow, Orange, Green. In addition, any desired colour and shade can be supplied at an additional cost
Colour Print
White
Text option
Yes
Logo option
Yes
Unique numbering option
Yes
Barcode option
Yes
Minimum order
1,000 pcs
Est. Delivery Time*
approx 4-6 weeks*

* Please contact us for current delivery time.

Interested? We will gladly advise you!

1) Request your customised quote without obligation! Please be as specific as possible about your printing, colour and other options. Do you have any questions or special wishes? Call us at +31(0)10-4950000 or send an e-mail to sales@navacqs.com
2) We will review your specific requirements with you;
3) If required, we will send you free samples to test the Universal Seal;
4) We will prepare a suitable quotation for you, including expected delivery time;
5) Before the seals go into production, you will receive a proof (artwork) for approval. Only after approval will your personalised seals be produced;
6) The seals with your own imprint will be delivered within the agreed deadline. Would you like a repeat order? Please contact us. If the design is known, we can easily continue the numbering on your previous order.

Do you have any questions or comments?

Please contact us at:
+31(0)10-4950000
sales@navacqs.com

Want to try first?

Request free samples of the Universal Seal!

Free samples

Would you prefer to try the product first? Request free samples of the Universal Seal today.

Request samples

Tailor-made quotation

Do you have specific wishes regarding the Universal Seal? We are happy to advise you.

Request quote
