Dunnage Bags

When transporting goods safely, it is essential that the cargo remains securely in place. Navacqs dunnage bags offer an effective solution for filling empty spaces in containers and trailers. They prevent cargo from shifting during transport, reducing the risk of damage. Navacqs supplies three types of dunnage bags: CargoSecure, CargoPlus (level 1), and CargoGuardian. Each type is designed for specific situations and provides reliable protection for various cargo types.

Dunnage Bags

CargoSecure 912 Dunnage Bag

900 mm x 1,200 mm: small dunnage bag for 1 pallet
Fill up to a maximum of 35 cm gap
Can be reused 2 to 3 times
Manufactured from 2 layers (polypropylene / polyethylene)
Cargo Air Gun required (not included)

CargoSecure 918 Dunnage Bag

900 mm x 1800: narrow, high dunnage bag for stacked pallets
Fill up to a maximum of 35 cm gap
Can be reused 2 to 3 times
Manufactured from 2 layers (polypropylene / polyethylene)
Cargo Air Gun required (not included)

CargoSecure 1218 Dunnage Bag

1,200 mm x 1,800 mm: wide, high dunnage bag for extra stability
Fill up to a maximum of 55 cm gap
Can be reused 2 to 3 times
Manufactured from 2 layers (polypropylene / polyethylene)
Cargo Air Gun required (not included)

CargoSecure 1221 Dunnage Bag

1,200 mm x 2,100 mm: extra long and wide dunnage bag for maximum counter pressure
Fill up to a maximum of 55 cm gap
Can be reused 2 to 3 times
Manufactured from 2 layers (polypropylene / polyethylene)
Cargo Air Gun required (not included)

Can we advise you? +31 (0) 10-495 0000
sales@navacqs.com

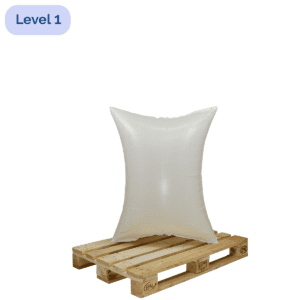

CargoPlus 912 Dunnage Bag Level 1

Level 1 AAR Certified
900 mm x 1,200 mm: Compact Dunnage Bag for 1 Pallet
Fill up to a Maximum of 35 cm Gap
Can Be Reused 2 to 3 Times
Manufactured from 2 Layers (Polypropylene/Polyethylene)
Cargo Air Gun Required (Not Included)

CargoPlus 918 Dunnage Bag Level 1

Level 1 AAR Certified
900 mm x 1,800 mm: Tall Dunnage Bag for 1 Pallet
Fill up to a maximum of 35 cm gap
Can be reused 2 to 3 times
Manufactured from 2 Layers (Polypropylene/Polyethylene)
Cargo Air Gun Required (Not Included)

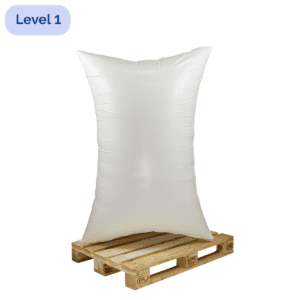

CargoPlus 1218 Dunnage Bag Level 1

Level 1 AAR Certified
1,200 mm x 1,800 mm: Wide, Tall Dunnage Bag for Extra Stability
Fill up to a maximum of 55 cm gap
Can be reused 2 to 3 times
Manufactured from 2 Layers (Polypropylene/Polyethylene)
Cargo Air Gun Required (Not Included)

CargoPlus 1221 Dunnage Bag Level 1

Level 1 AAR Certified
1,200 mm x 2,100 mm: Extra Long and Wide Dunnage Bag for Maximum Counterpressure
Fill up to a maximum of 55 cm gap
Can be reused 2 to 3 times
Manufactured from 2 layers (polypropylene / polyethylene)
Cargo Air Gun Required (Not Included)

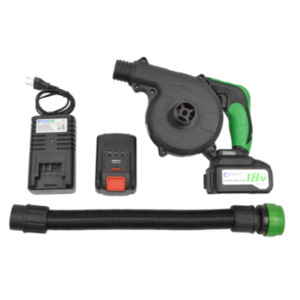

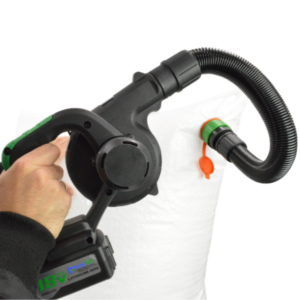

Portable Air Master

Suitable for Cargo Secure and CargoPlus dunnage bags
Cordless filling and emptying of dunnage bags
Weighs only 3.3 kg
Includes 2 batteries and quick charger

Cargo Air Gun

Suitable for CargoSecure and CargoPlus dunnage bags.
Overprint is automatically discharged
Fits any common compressor with a ¼ ”connection

Cargo Guardian Standard

900 mm x 1,200 mm: small, extremely robust dunnage bag
Filling space up to a maximum of 35 cm
Intended for single use
Manufactured from 2 layers (polypropylene / polyethylene)
Cargo Guardian Air Gun required (not included)

Cargo Guardian Air Gun

Suitable for the Cargo Guardian Dunnage Bags
Flexible to use
Fits any common compressor with a ¼ ”connection

Load Securing

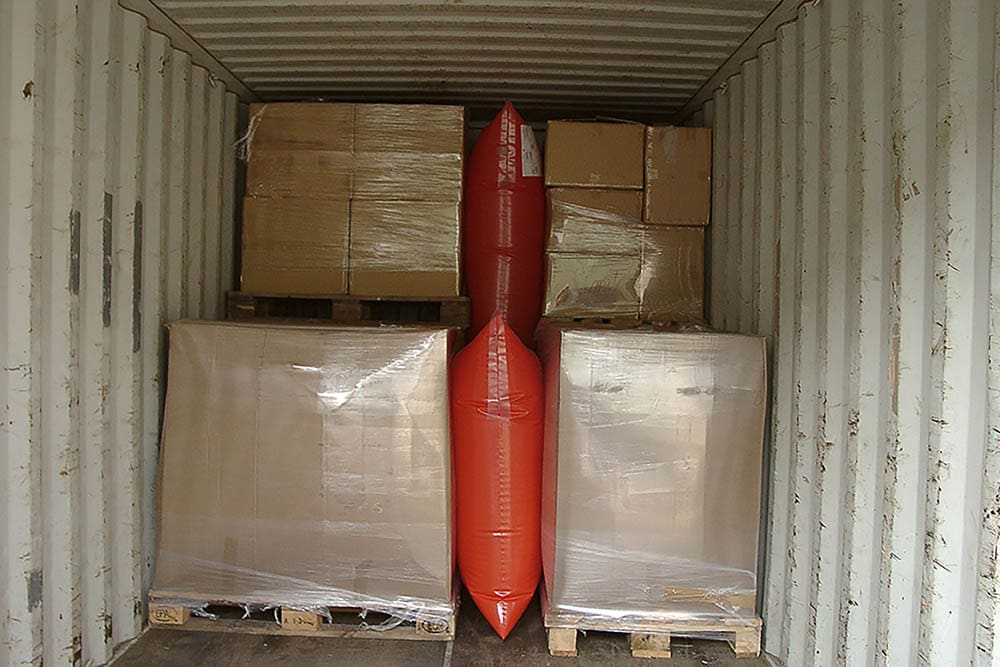

During loading, empty spaces often occur between pallets or products in a container or trailer. If these spaces are not filled, cargo can shift during transit. This not only causes product damage but also creates a safety hazard. By using dunnage bags, the load is held in place. The bags are placed between the cargo and inflated using an air gun. They fill the void and evenly distribute pressure, keeping the load securely fixed.

Level 1 Dunnage Bags

The CargoPlus dunnage bags from Navacqs are certified as level 1 and suitable for medium-duty applications. With a reinforced outer layer and internal structure, they are exceptionally durable. CargoPlus dunnage bags can be reused several times, making them ideal for logistics processes where sustainability and reliability matter. For lighter applications, CargoSecure is a dependable standard solution that can also be reused two to three times. For single-use scenarios involving heavy or sensitive cargo, the CargoGuardian is available, offering the thickest outer and inner layers in the range.

Air Gun and Compressor

To properly fill the dunnage bags, a compressor with an air gun is required. For each type of dunnage bag, a compatible air gun is specified. Navacqs air guns come with a standard connection and are compatible with almost all common compressors. For quick and efficient inflation, a compressor with a power rating between 2 and 4 HP, an airflow capacity of 500 liters per minute, and a tank volume of 200 to 300 liters is recommended. Smaller compressors can also be used, although they take longer to fill the bags completely.
