Product description CargoSecure 912 Dunnage Bag L1

🛠 English text soon to be ready! 🛠
In the meantime, please read the automated translated text below. You can contact our sales department located in Rotterdam, the Netherlands, for more information: +31 (0) 10-495 0000 or sales@navacqs.com

The CargoSecure Dunnage Bag 912 is one of the most compact level 1 dunnage bags from Navacqs. The air cushion has a size of 900 mm by 1,200 mm (90 cm by 120 cm). This makes the dunnage bag suitable for stowing small pallets in the width direction. The CargoSecure 912 is suitable for filling spaces up to 35 cm. Thanks to the special valve, CargoSecure dunnage bags can be reused 2 to 3 times. This type of dunnage bag is manufactured from two layers, namely a polypropylene (PP) woven outer layer with a thickness of 90 grams per m2 and a polyethylene (PE) inner layer with a thickness of 80 microns (0.08 mm). To inflate and pressurize the dunnage bags, the CargoSecure air gun is required. The air gun is optionally available.

900 mm x 1,200 mm: small dunnage bag for 1 pallet

The CargoSecure Dunnage Bag 912 is one of the most compact dunnage bags from Navacqs. The air cushion has a size of 900 mm by 1,200 mm (90 cm by 120 cm). This makes the dunnage bag suitable for stowing small pallets in the width direction. By inflating the dunnage bag, the 90 cm width will decrease slightly, making the CargoSecure 912 perfect for stowing the load evenly. This format is therefore suitable for euro pallets with a width of 80 cm.

The advice is to use this type of dunnage bag for pallets that are no higher than 1 meter. For pallets with more goods, we recommend the CargoSecure 918 . This dunnage bag has the same width of 900 mm (90 cm), but a height of 1,800 mm (180 cm). The height is useful to optimally support higher pallets. The precious cargo remains well protected during transport.

Fill up to a maximum of 35 cm gap

The CargoSecure 912 is suitable for filling spaces up to 35 cm. This can be for spaces between the pallets, but also spaces between the pallets and the wall of the container or truck. The dunnage bag can easily be placed in the interspace and can be inflated on site. Filling a narrower space of less than 35 cm is of course no problem with this dunnage bag.

For spaces between 35 and 55 cm, other dunnage bags are suitable, namely the CargoSecure 1218 . That type has a length of 120 cm and a width of 180 cm. Thanks to these dimensions, the 1218 can fill spaces up to 55 cm.

Can be reused 2 to 3 times

The CargoSecure dunnage bags are equipped with a special valve. The valve is designed to easily allow air to flow into the dunnage bag. Thanks to a spring in the valve, it is also possible to easily empty the dunnage bag. This allows the CargoSecure dunnage bags to be used several times. When reusing, it is advisable to check the dunnage bag thoroughly for possible damage.

To prevent damage during the transport of the load, we recommend placing the dunnage bag 10 cm from the ground. This prevents wear on the underside by, for example, sliding and sanding during transport.

Manufactured from 2 layers (polypropylene / polyethylene)

This type of dunnage bag is manufactured from two layers, namely a polypropylene (PP) woven outer layer with a thickness of 90 grams per m2 and a polyethylene (PE) inner layer with a thickness of 80 microns (0.08 mm). The combination of these two materials creates a very strong and high-quality dunnage bag with a maximum pressure of 0.57 bar (57 kPa). The outer layer (PP) aims to make the bag robust and to prevent damage. The function of the inner layer (PE) is to keep the air in the bag excellent, even during months of transport.

The CargoSecure dunnage bags fall into the Level 1 category, because the maximum pressure is 0.57 bar. The quality of the stitching also affects the strength of the dunnage bag. The American body AAR (American Association of Railroads) checks and certifies the dunnage bags. All CargoSecure dunnage bags from Navacqs are certified Level 1 dunnage bags.

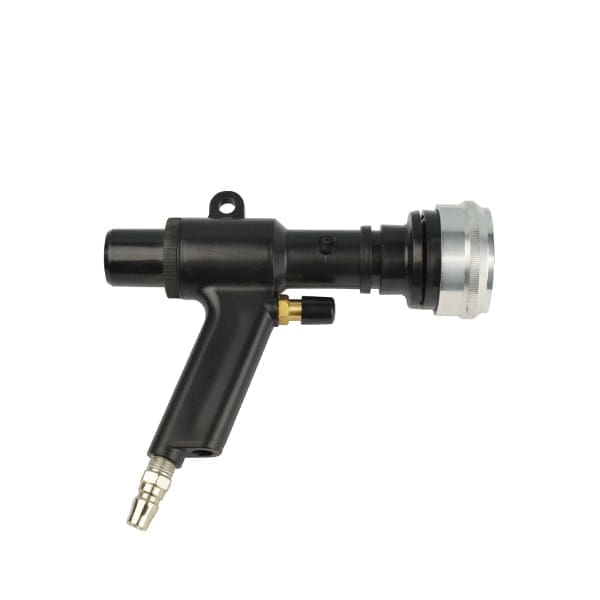

CargoSecure Air gun required (not included)

A special air gun is required to inflate and pressurize the dunnage bags, namely the CargoSecure air gun . The valve of the dunnage bag and the air gun are fully coordinated. Other air guns from other dunnage bags, for example, cannot be used for the CargoSecure dunnage bags.

The air gun has a special pressure relief valve. When the dunnage bag is inflated to the correct pressure, the overpressure will flow away via the back of the air gun. This ensures that the dunnage bag always has the correct pressure. With air guns without overpressure It is possible that dunnage bags are over-inflated. As a result, the cargo is damaged or even the outer walls of a container can be pushed out.

Use in combination with compressor

The CargoSecure air gun is easy to connect to a compressor hose with quick coupling. The gun is fitted with a standard ¼ ”connection. Any compressor can be used to inflate the dunnage bags for occasional use. When using dunnage bags frequently, the advice is to use a compressor with the following specifications:

Power: 2-4 hp
Capacity: 500 liters / min
Boiler capacity: 200-300 liters

Do you have questions or the use of dunnage bags? We are happy to advise and support you in drawing up a charging plan. Please contact us via +31 (0) 10-495 0000 or sales@navacqs.com to discuss the possibilities.
